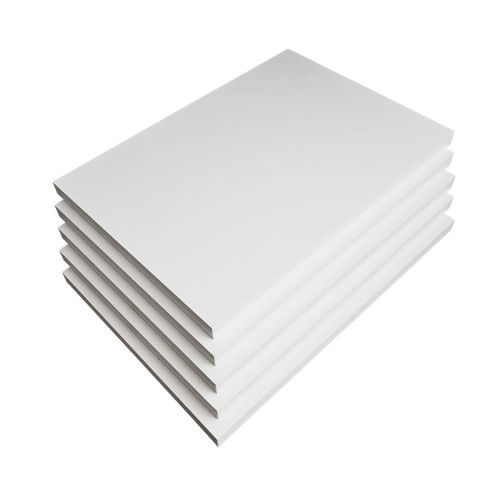

Plastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box Culvert

Plastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box Culvert

Plastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box Culvert
Plastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box CulvertPlastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box CulvertPlastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box CulvertPlastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box CulvertPlastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box Culvert
CategoriesPVC Concrete Formwork
BrandBoardway Plastic Sheet PVC Foam Board Manufacturer
MaterialPolyvinyl chloride
Custom specificationsLength, width, thickness, density
Processing servicesCut to size, cnc engraving, bending
Supporting servicesSourcing, construction technical guidance
Packing methodPE bag, carton, pallet
Transportation modeFCL/LCL by sea, air, road and rail
FOB portGuangzhou, Shenzhen, Shanghai, Ningbo port, China
Terms of PaymentL/C, D/P, Western Union, MoneyGram, T/T, Paypal, Trade Assurance
Download
Update TimeDec 5,2024
Detail Information
pvc concrete formwork

PVC Concrete Formwork

A PLASTIC FORMWORK WITH HIGHER DURABILITY AND COST-EFFICIENCY


PVC concrete formwork is an environmentally friendly, high-tech plastic composite material primarily composed of polyvinyl chloride (PVC) and specialized additives designed to meet specific performance requirements. It is manufactured using extrusion foaming technology.

With excellent water resistance, heat resistance, and dimensional stability, PVC formwork serves as a full replacement for wooden formwork, eliminating common issues found in wood. It is suitable for various construction applications, including parallel and vertical use in columns, beams, side walls, stairs, elevator shafts, high-rise buildings, bridges, viaducts, tunnels, and more.

As the reuse cycles of PVC formwork increase, the cost per use significantly decreases. Compared to traditional wood formwork, using PVC formwork can reduce overall project costs by 50% to 60%.


Product Details
Our high-quality PVC formwork features a smooth surface, enhanced toughness, and superior rigidity, making it resistant to deformation and cracking. This ensures that the concrete surface after pouring is flat and smooth, with no excess concrete leakage at the corners or formwork joints. This reduces the need for additional polishing and finishing work, ultimately saving on labor and materials.
PVC Concrete Formwork
PVC Concrete Formwork

Concrete Surface
Concrete Surface: Flat and Smooth

In addition to flat PVC formwork, we offer curved PVC formwork specifically designed for projects requiring curved concrete surfaces. With its flexibility and durability, our curved formwork enables smooth, precise curves in concrete structures. This formwork is ideal for creating architectural features, columns, bridges, tunnels, and any construction where a curved surface is essential, offering both versatility and efficiency for complex projects.
Customizable Curved Plastic Formwork
Curved Formwork For Bridge

Curved PVC Concrete Formwork for Bridge
The Use And Shipping Of Curved Formwork


Advantage
waterproof plastic formworkWaterproof -resists swelling, bending, or deforming when exposed to water
corrosion resistant pvc formworkAnti-corrosion -acid-resistant and alkali-resistant, with no risk of corrosion
weather resistant plastic formworkWeather resistance -suitable for use in cold, hot, and humid environments
pvc concrete formwork can be screwedNail-holding strength -holds screws securely, preventing slippage
high impact resistant pvc concrete formworkGood impact resistance -resists cracking even when dropped or impacted
pvc concrete formwork easy to cutStrong workability -easily sawed, drilled, nailed, and planed with conventional tools
reusable pvc concrete formworkCost efficiency -can be reused up to 30 times, reducing project costs
pvc concrete formwork cost-effectiveSaves labor and time -can be reused up to 30 times, reducing project costs
pvc concrete formwork with high qualitySmooth concrete surface -requires no mold release agent and no plastering
fireproof pvc formworkEco-friendly -our PVC formwork promotes environmental responsibility by reducing waste and minimizing carbon footprint

Comparison
pvc concrete formwork vs plywood formwork

PVC Formwork VS. Plywood

We conducted a practical comparison of plywood and PVC formwork on our construction site to assess performance under identical conditions.

The picture on the left shows both types of formwork in use within the same building section and area, providing a clear side-by-side evaluation.

Notably, each formwork type has been reused 6 times, allowing us to observe their durability, ease of handling, and quality of concrete finishes over multiple cycles. This comparison highlights the strengths and weaknesses of both materials in real-world conditions.

Formwork Performance
PVC Concrete Formwork
Plywood Formwork
Hardness
70 - 75 Shore D
Less than 30 Shore D
Flatness
Flat overall, slightly bent
The bending height is close to 2 cm
Surface
No damage on the surface, with small dent
The surface is damaged, especially near the edge
Corners
Intact and undamaged
The corners are cracked, not right angles
Expansive Deformation
No expansion
Expand and separated layer
Service life
Can continue to be used
Out of use

The concrete surface after demoulding from both formworks is shown below. The concrete cast using PVC formwork has a significantly better finish. The following images compare the appearance of the concrete surfaces: on the left, the concrete formed with PVC formwork, and on the right, the concrete formed with plywood formwork.
pvc formwork vs plywood formwork
Concrete Appearance
PVC Concrete Formwork
Plywood Formwork
Concrete Color
The color of concrete can be uniform and beautiful without a mold release agent
A release agent must be used, otherwise the color of the concrete cannot be uniform
Wall
Overall clean and smooth
Rough with dirt and scratch, and uneven concrete
Ceiling
Tight joints, with only a little concrete overflow
There is excess concrete in the joints, need to be removed manually
Beam
Overall clean and smooth
Rough with dirt and scratch, and uneven concrete, especially at the junction
Pillar
Overall clean and smooth
The concrete at the junction is uneven, with concrete overflow or insufficient

Specification
Size

915x1830mm, 1220x2440mm, 1220x3000mm, size can be customized

Thickness

12mm, 15mm, 16mm, 18mm

Density

0.65, 0.7, 0.75, 0.8 g/cm3

Surface

Smooth

Customizable Options

Available upon request to accommodate specific project requirements


Technical Data Sheet
Testing sample: PVC concrete formwork, 18mm thick
Test Item
Method
Unit
Result
Density
ASTM D792
g/cm3
0.73
Hardness
ASTM D2240
Shore D
75
Water Absorption
ASTM D570
%
1.5
Flexural Strength
ASTM D790
MPa
26
Flexural Modulus
ASTM D790
MPa
1000
Tensile Strength at Yield
ASTM D638
MPa
30
Tensile Modulus
ASTM D638
MPa
1200
Elongation at Break
ASTM D638
%
15
Modulus of Elasticity
ASTM C1548-2
MPa
1600
Charpy Impact Resistance
ASTM D6110
KJ/m2
36


Construction Sites
Our PVC concrete formwork is versatile and suitable for a wide range of construction projects, providing optimal performance in various applications. Here are some key scenarios where our formwork excels:
  • Residential / Commercial Construction (aluminum support structure)
pvc formwork for buildings
pvc formwork for elevator
pvc concrete formwork
  • Residential / Commercial Construction (wood support structure)
plastic pvc formwork
pvc concrete formwork for pillar
pvc formwork construction
  • Public Works (Community Centers)
fair-faced pvc concrete formwork
pvc formwork concrete surface
plastic formwork concrete surface
  • Public Works Construction (High-speed Railway Station)
plastic pvc formwork contruction site
pvc formwork for railway station construction
pvc formwork for concrete column
  • Industrial Construction (Elevated Bridge)
pvc formwork for bridge
arched pvc formwork for bridge
pvc formwork construction use


Options For Customers
For Formwork Wholesalers
We offer PVC concrete formwork in a variety of grades and specifications. The size, thickness, and density can be fully customized to meet your specific requirements. We also accept mixed-specification shipments, providing you with flexibility and convenience in your orders.
production of pvc formwork panel
15mm pvc formwork panel
hardness of pvc formwork panel
For Builders
We can provide PVC formwork cut to your desired sizes, such as 300x2450mm, 400x1200mm, 250x1200mm, 300x600mm, and more, helping to reduce labor costs on-site. Additionally, if you need to purchase other construction accessories in China, such as structural parts, fasteners, or tools, we leverage our extensive network to assist with procurement and shipping.
packing for pvc formwork panel
pvc formwork panel in 850mm wide
loading for pvc formwork panel
For Developers and General Contractors
We offer comprehensive construction solutions tailored to your project needs. Based on your drawings, we can calculate the total amount of PVC concrete formwork required, providing you with an accurate material cost estimate and a comprehensive budget for optimal usage. If you are handling part or all of the concrete formwork for your project, Boardway's experienced construction team is available to visit your site and provide on-site technical guidance.
Boardway construction team
pvc formwork construction site
plastic formwork construction site
